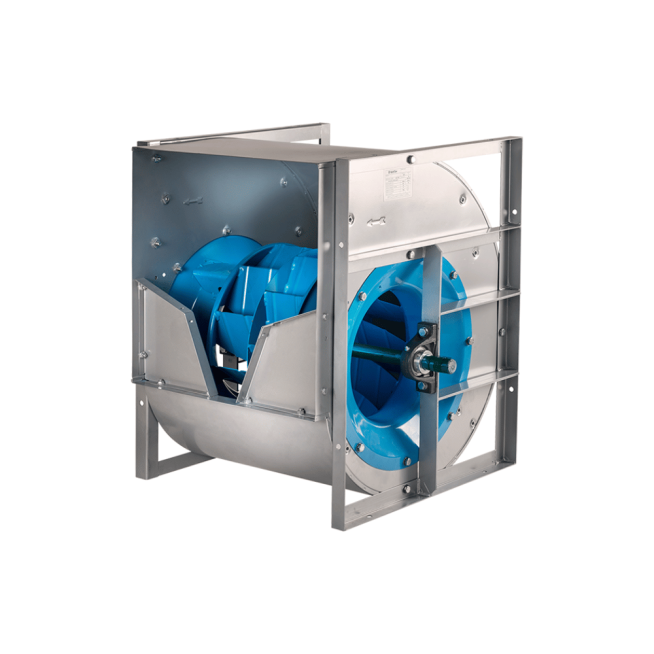

Comefri NTHZ 400 T2 Centrifugal Fan

The Comefri NTHZ 400 T2 is a high-efficiency, double inlet centrifugal fan with backward-curved blades, engineered for demanding commercial and industrial ventilation and air handling. Its 400mm steel impeller features 11 welded, backward-curved blades paired with Comefri’s patented ForeFinger inlet cone technology, delivering very high efficiency and strong performance at medium-to-high pressures.

Built with a Pittsburgh-closure housing, trapezoidal cut-off and low-maintenance ball bearings, the NTHZ 400 T2 is a robust, reliable choice for larger air handling units and higher-duty ventilation systems. Performance data conforms to DIN 24166 Class 1, the fan is ErP 2015 compliant, and the NTHZ series is AMCA certified.

Supplied as a bare shaft fan for belt drive, it’s paired with a motor and pulley arrangement selected to your duty, giving full control over airflow and pressure. The “T2” designation denotes the fan’s rotation and discharge orientation — important to match when replacing an existing unit.

Ideal for: larger air handling units, industrial ventilation, and higher-efficiency, higher-pressure HVAC systems.

Features

• High-efficiency double inlet centrifugal fan, backward-curved blades
• 400mm steel impeller with 11 welded, backward-curved blades, painted
• Patented ForeFinger inlet cone for very high efficiency
• Pittsburgh-closure housing with trapezoidal cut-off
• Low-maintenance ball bearings
• Performance to DIN 24166 Class 1
• ErP 2015 compliant
• AMCA certified series
• Bare shaft, belt-drive configuration
• “T2” rotation/discharge orientation

What’s included

• NTHZ 400 T2 fan
• Outlet flange
• Outlet flexible connection
• Delivery to mainland UK

Specifications
